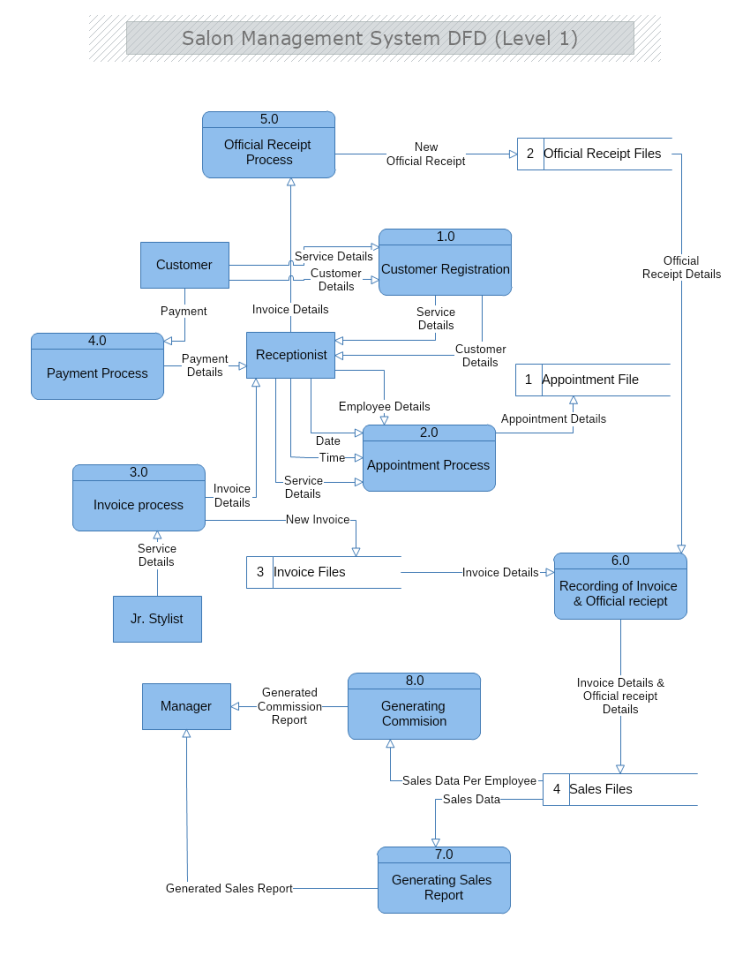

This template represents Level 1 Data Flow Diagram of Salon Management System. This level of DFD illustrates the flow of information between the main processes and databases within the system and the external entities connected to it. In the shown example this includes the processes of Customer Registration; Appointment; Invoice; Payment; Official Receipt; Recording of Invoice and Official receipt; Generating Sales reports and Generating Commission, the databases used for the storage of Appointments files; Official Receipt Files; Invoice file; and Sales Files, and the external entities in the face of the Customer; the Junior Stylist; the Receptionist; and The Manager. This template is suitable for any kind of service providers. Download this free template and modify it with MyDraw so it meets your needs and requirements.
|
