Heart Anatomy Template

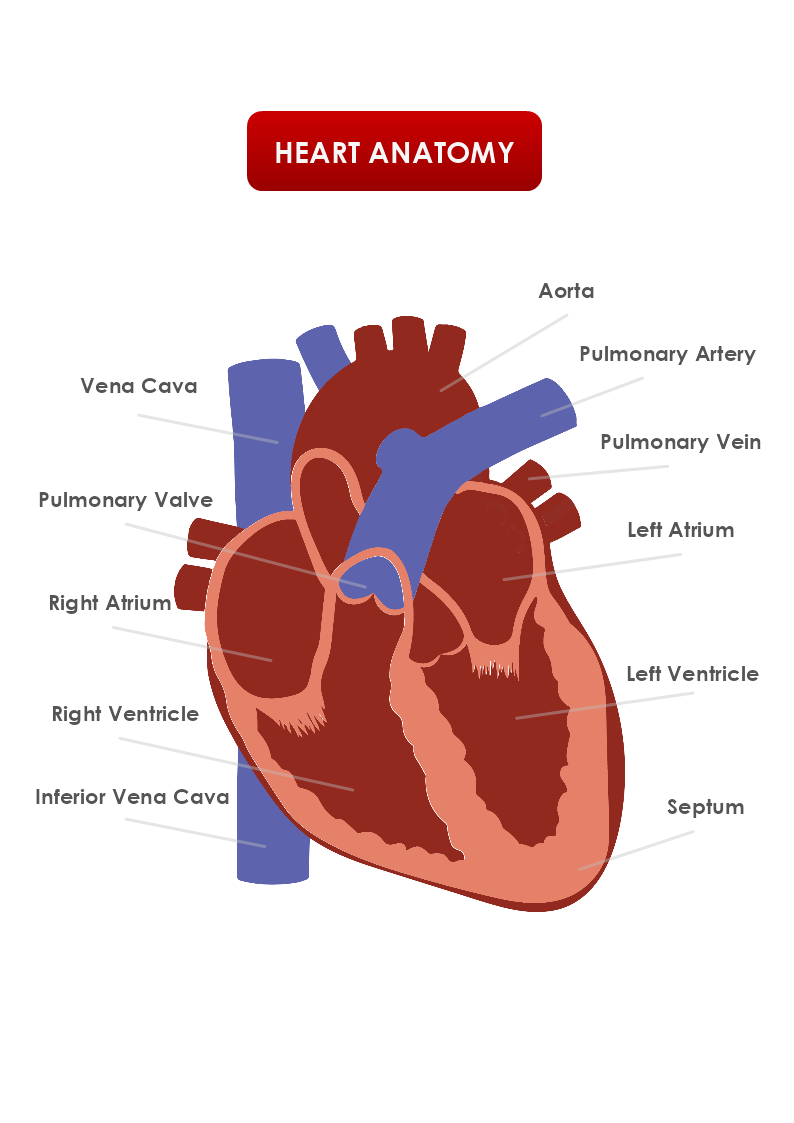

This is a Heart Anatomy template that can be used as a learning example in a class for Anatomy. The diagram will help the students in visualizing the human heart diagram and its functions. The template is customizable with a few drags and drops in MyDraw.

Download Template:
Nevron NDTX
Nevron PDF

Heart Anatomy

What is the Anatomy of the Heart?

The heart is divided into four chambers and it is one of the most important organs in the human body. The heart is like a network of blood vessels that pumps blood throughout your body. Its function depends on the family history, personal health history, and lifestyle all affect how well your heart works.

7 Facts about the Function and Anatomy of the Heart

The heart is a muscular organ that is responsible for pumping blood throughout the body. It is located in the chest cavity, behind the sternum, and between the lungs.

It has four chambers: the left and right atria, and the left and right ventricles. Oxygen-poor blood from the body enters the right atrium and is then pumped into the right ventricle and sent to the lungs for oxygenation. Oxygen-rich blood from the lungs returns to the left atrium and is then pumped into the left ventricle and sent out to the rest of the body.

The heart has its electrical conduction system, which helps to coordinate the contraction of the heart muscle and ensure that blood is pumped efficiently. The sinoatrial (SA) node, located in the right atrium, acts as the heart's natural pacemaker and sends out electrical signals to stimulate contraction.

The heart has a network of blood vessels, including the coronary arteries, which supply the heart muscle with oxygen and nutrients. If these arteries become blocked or narrowed, it can lead to a condition called coronary artery disease, which can cause a heart attack.

The heart has three layers of tissue: the outer epicardium, the middle myocardium, and the inner endocardium. The myocardium, or heart muscle, is responsible for pumping blood and is made up of special cardiac muscle cells.

Four valves help to ensure that blood flows in the correct direction through the heart. The tricuspid valve is located between the right atrium and right ventricle, the pulmonary valve is located between the right ventricle and the pulmonary artery, the mitral valve is located between the left atrium and the left ventricle, and the aortic valve is located between the left ventricle and the aorta.

It is a vital organ that is essential for maintaining the circulation of blood and oxygen to the body's tissues. It can adapt to changes in the body's needs, such as during exercise, and can increase or decrease its rate of contraction to meet these needs.

How to create a custom shape for the Heart Anatomy diagram in MyDraw?

  1. You can create your shape in a vector program and import/ insert it as a vector or raster image. The other option is to use MyDraw’s Basic shapes and connectors and make your custom shape.
  2. Once you are happy with the custom shape you could include it in your Library.
  3. Click on the textbook icon on the left side of the bar and choose “New Library”. Name the library and drag and drop the shape in it.
  4. Then right-click with the mouse on the Library tab and choose “Save as”.
  5. Choose the folder location on your computer and save it as a .nlb file.
  6. For future use, you could always add the newly created library to other diagrams.
  7. You can also use one of the shapes from Healthcare
  8. Once you have created your diagram/ template you can save the document in one of MyDraw’s native formats or export it in a preferred file format(PDF, SVG, EMF, VSDX, etc.).
  9. You can also export the document as a raster image.
